Description
of the base chassis
of the base chassis
Base, mm
3770
Passenger capacity
3
Drive
4x4
Clearance, mm
207
GVW
6850
Description
of the add-in
of the add-in
Curb weight, kg
4960
Load capacity, kg
2160/1895 (with put-on sides)
Body capacity, m³
5 (10 with put-on sides)
Basic chassis
GAZ-С41A23
Min. turning radius, m
8
Platform tilting angle (rear)
50/45
Dimensions along main sides
3500 / 2280 / 620
Dimensions along put-on sides
3500 / 2280 / 1230
Platform
Metal welded, with opening lateral and rear sides, optionally with put-on sides and additional extensions.

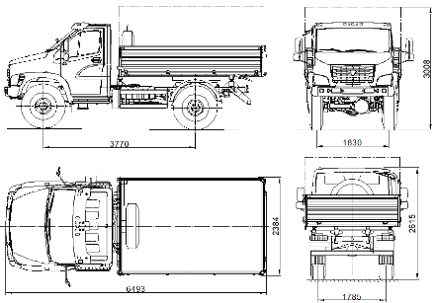

Description and dimensions
of the specification
of the specification

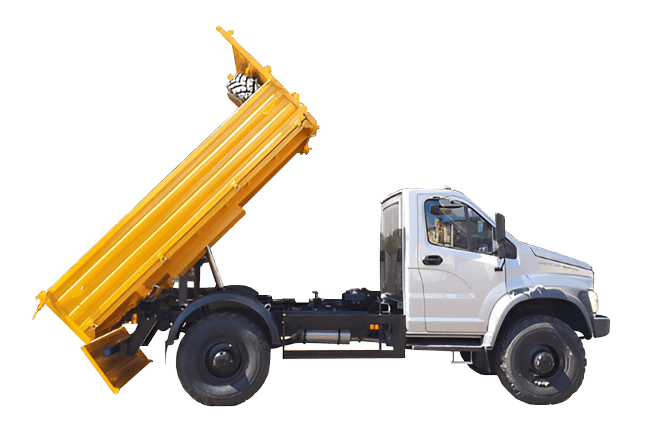

The vehicles are designed for transportation on public roads and off-road and for mechanized unloading of various agricultural goods, and fine bulk industrial and construction materials.
Platform tilting mechanism – hydraulic, driven from the vehicle power takeoff.
Platform – welded, with hinged rear side, with over-cab extension, canopy, ladder. Side latch lock operation – manual. Lateral sides assistants to reduce the closing effort.
* Vehicle carrying capacity is determined as the difference between the allowed gross vehicle weight and curb weight of the vehicle including the passengers' weight.
